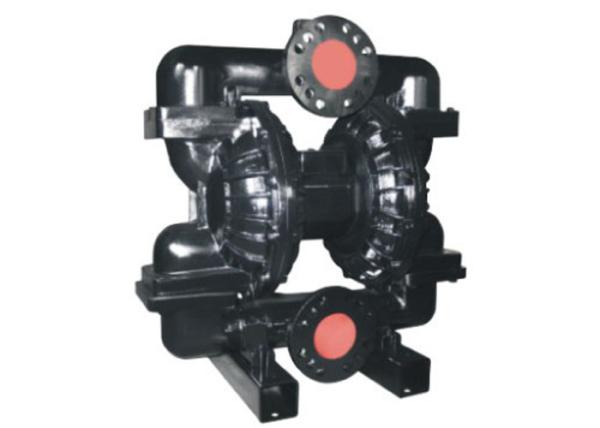

Air Operated Diaphragm Pump, Pneumatic Diaphragm Pump, double
diaphragm pump dN80
Descriptions
A single piece polypropylene center section for increased
reliability and chemical compatibility, plus high-reliability
modular air valve. The overmolded frame for improved reliability
and will help to eliminate fluid leakage and new generation of
diaphragm design that increases flow with flow rates up to 265 gpm
(1004 lpm) - making it one of the most efficient pumps on the
market.
- Self priming
- Dry proof
- High suction capacity
- No electric components
- Discharge outlet with protection
- Solid external sturcture
- Vast compatibility of fluid media
- Reduced internanal volume minimize the waste and easily clean
- Stainless steel bolt are corrosion resistant, and offer you
reasonable positioing and conveniently reassemble
- Unique designed three way control valve ensure no block operation,
easily parts maintenance, no need lubrication for air pipeline
- Worn resistance parts ensures precisely positioning of stem and
fast replacement
Technical data sheet
| Model | Max flow (LPM) | Head(m) | Suction H (m) | Out P (kg) | In/out dia(mm) | Air in dia(in) | Max particle dia (mm) |
| RQB3-10 | 22 | 70 | 4.0 | 7 | 10 | 1/4 | 1.5 |
| RQB3-15 | 22 | 70 | 4.0 | 7 | 15 | 1/4 | 1.5 |
| RQB3-20 | 57 | 70 | 4.0 | 7 | 20 | 1/4 | 2.5 |
| RQB3-25R | 57 | 70 | 4.5 | 7 | 25 | 1/4 | 2.5 |
| RQB3-25A | 116 | 84 | 5.48 | 8.4 | 25 | 1/2 | 3.2 |
| RQB3-32 | 151 | 84 | 5.48 | 8.4 | 32 | 1/2 | 3.2 |
| RQB3-40 | 151 | 84 | 5.48 | 8.4 | 40 | 1/2 | 3.2 |
| RQB3-50 | 378.5 | 5.48 | 8.4 | 50 | 1/2 | 4.8 |
| RQB3-65 | 378.5 | 84 | 5.48 | 8.4 | 65 | 1/2 | 4.8 |
| RQB3-80 | 568 | 84 | 5.48 | 8.4 | 80 | 1/2 | 6.4 |
| RQB-100 | 568 | 84 | 5.48 | 8.4 | 100 | 1/2 | 6.4 |
| RQB-125 | 1041 | 84 | 2.4-7.6 | 8.4 | 125 | 3/4 | 9.4 |
| RFQ-25 | 116 | 84 | 5.48 | 8.4 | 25 | 1/2 | 3.2 |
| RFQ-40 | 378.5 | 84 | 5.48 | 8.4 | 40 | 1/2 | 4.8 |
| RFQ-50 | 568 | 84 | 5.48 | 8.4 | 50 | 1/2 | 6.4 |
| RFQ-80 | 1041 | 84 | 2.4-7.6 | 8.4 | 80 | 3/4 | 9.4 |
Air compressor recommendation & filter press
| Model | Air consumption (m3/min) | Power of compressor | Filter press capacity (m2) |
| RQB3-10/15 | 0.18 | 2.2 | 10-20 |
| RQB3-20/25 | 0.36 | 3 | 10-20 |
| RRQ3-25 | 0.67 | 5.5 | 30-40 |
| RQB3-25A | 0.67 | 5.5 | 30-40 |
| RQB3-32/40 | 0.67 | 5.5 | 30-40 |
| RFQ3-40 | 0.9 | 7.5 | 50-60 |
| RQB3-50/65 | 0.9 | 7.5 | 50-60 |
| RFQ3-50 | 1.5-2 | 11-15 | 60-100 |
| RQB3-80/100 | 1.5-2 | 11-15 | 60-100 |
| RFQ3-80 | 3.0 | 18.5-22 | 100-120 |
| RQB3-125 | 3.0 | 18.5-22 | 100-120 |
Features
One diaphragm pump for two guns stainless steel air tank
High pressure brass ball valve High quality pressure adjust valve
Applications:
| Waste water treatment, sludge, screening | Effluent treatment plant | Pharmaceutical feeds, transfer |
| Automotive wash, lube, oil | Ceramics mix & cast, glaze | Chemical injection, process |
| Pulp & paper batching, bleaching | Construction coating, dewatering | Food processing transfer, packaging |
| Marine bilge, cleaning | Mining utility, dewatering | Oil & gas transfer, clean up |
Comptetitve advantage
The air-driven double diaphragm transfer pumps. No electrical
components are required because the pumps are air-driven. RD series
pumps are run-dry safe and self-priming. The pump capacity can be
controlled by changing the pressure in the air supply. The air
control is designed for oilfree operation. The RD series pumps are
ideally suited for the transport of liquid chemicals. It transports
media at up 6,700 l/h and up to a discharge lift of 70 m.
As the pump capacity is highly dependent on the back pressure, the
performance curve must always be observed. At the sametime, the differential pressure between the hydraulic and
pneumatic sides should not exceed 2 bar. Higher values reduce the
service life of the pump. When selecting pumps, check the material
compatibility. In addition, consider the density, viscosity and
temperature of the transported medium.
Factory show
