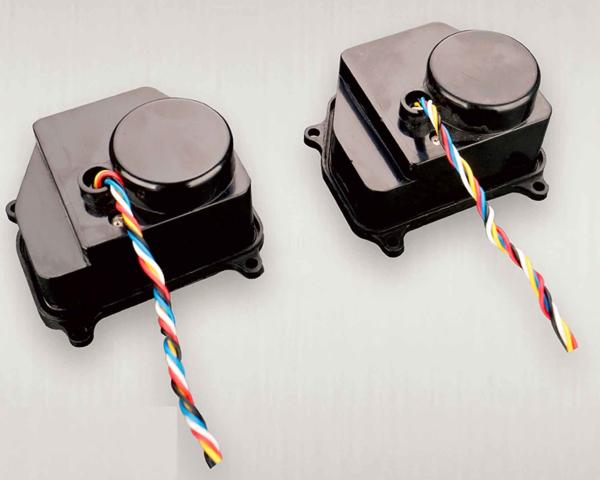

geared synchronous motor actuator, step motor, zone valve motor DC5V/DN15

Product description

Our motorized valve actuators are widely used the zone control valves in heat meter, floor heating system, hot water control, air conditioning, HVAC, cold water meter, etc. The actuator is driven by geared synchronous motor, and the movement is stable. A zone valve motor is a specific type of valve used for controlling the flow of water or steam or liquid in a hydronic heating or cooling sytem. The built-in limit junction can make the power off when valves fully open or closed. Valve body is forged by brass, with zinc plating surface.

This motorized ball valve has a reversible synchronous geared motor, that's DC2.5-5V mini motorized valve actuator, which ball valve actuators are widely used the zone control valves in heat meter, floor heating system, hot water control, air conditioning, HVAC, cold water meter, etc.

Technical data-Model K05
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM
5. Open/close time: <8S
6. Velocity reduction ratio: 1500:1 (for DN15 / DN20 ball valve)
7. Protection: IP67

Wiring definition
