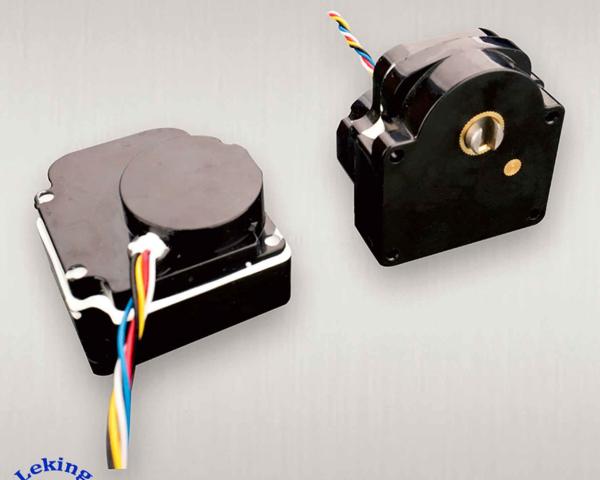

zone valve synchron motor, replacement zone valve motor,24V zone valve motor actuator

Product description

Our motorized valve actuators are widely used the zone control valves in heat meter, floor heating system, hot water control, air conditioning, HVAC, cold water meter, etc. The built-in limit junction can make the power off when valves fully open or closed. Valve body is forged by brass, with zinc plating surface. The actuator is driven by geared synchronous motor, and the movement is stable. A zone valve motor is a specific type of valve used for controlling the flow of water or steam or liquid in a hydronic heating or cooling sytem. An ideal honeywell zone valve motor replacement head.

Technical data-Model K06
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM (2400:1); >4.5NM (5000:1)
5. Open/close time: <10S (2400:1) <20S (5000:1)
6. Velocity reduction ratio: 2400:1 (for DN15 / DN20 ball valve); 5000:1 (DN25)
7. Protection: IP67

Wiring definition

Production overview

We're a national key high-tech enterprise serving in fields of new energy management system and equipment, main services include: HVAC central air-conditioning and cold storage, solar distributed energy & regional energy, flow & energy management.

We have integrative certification of mechanical & electrical installation and building intelligentized design & construction, production license of measurement production, and is able to contract projects of building mechanical and electrical installation, building intellectualizing, distributed energy, combined cold & heat & power supply and new energy application.

RUNPAQ initiates a low-carbon building energy route with the concept of "low-carbon energy, future of architecture":

1. Developing energy-saving technologies to improve the electricity efficiency and reduce the energy needs;

2. Developing new energies to reduce the dependence of building on mineral energy.
