new Residential Smart Water Meter, plastic volumetric water meter Class C, R160

General description

The volumetric water is also called rotary piston water meter, its sanitary design for directly potable water bulk flow meter measurement. The R value is 160 or better. Its features high accuracy, low initial flow, easily read, safety and long service life. Our multi jet water meter is made of brass, plastic or iron as requested, we produce high quality multi jet water meter, it is dry dial type, vane wheel. Available in sizes 15mm to 50 mm with nominal flow rates of Qn 1.5m³/h to Qn 15m³/h. It's for cold water volumetric measurement, or hot water up to 90 ℃.

Key Features:

• Low starting flow
• Can be installed in any position, such as horizontal, vertical, etc.
• Rotary piston, liquid seal mechanical transmission with direct reading counter, high reliability.
• High precision
• Full plastic case (if necessary also be equipped with a copper shell).
• Optional remote signaling device, designed and manufactured according to customer needs and different pulse equivalent signaling components remote water meter.
• The meter technical parameters meet international standards of ISO4064 C levels

Operate condition:

• Water temperature:0.1℃～40℃ for cold water
  30℃～90℃ for hot water meter.
• Water pressure: ≤1.0 Mpa

Note:

• Measuring accuracy conform to ISO 4064 class B standard..
• Available with different length on request. Available in hot water meter on request.

Maximum Permissible Error:

(1) Between qt (included) and qs is ±2%;
(2) Between qmin and qt (excluded) is ±5%.

Data sheet

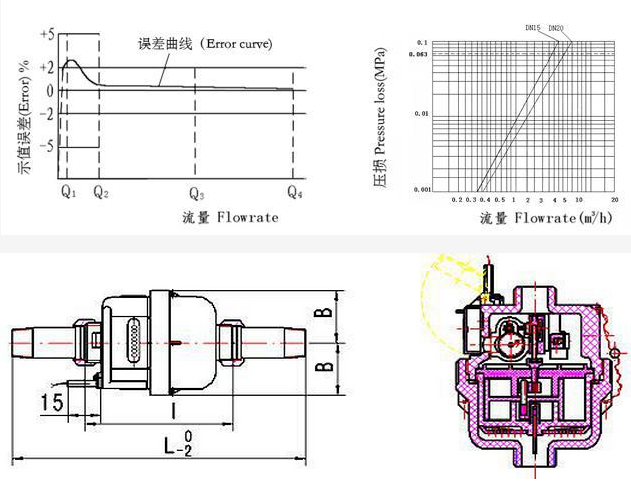

Flow curve

Competitive Advantage:

• Compliance to international standards: ISO4064 / GBT778 / Q/320700JR05-2003
• Strict process control
• Advanced calibration equipment
• Engineer team
