3 way zone valves for baseboard heating, zone heating valves with actuator motor

Product Description

In a central heating and cooling system, the zone control valve is a switch that is part of the water flow, fire protection system in a building. Its main purpose it to regulate water flow in the designated “zones” or areas and in some buildings, by floors / levels, thus named zone control valve. Our zone control valve is a system designed to separate the area in case of maintenance and to get the indication of different zone. The brass zone control valves of ours, are available from DN15 to DN32, and many different thread connection ports.

Features

1. Extreme long service life span ;

2. Manual Override, the valve can be operated when power failure;

3. Mini dimension and position indicator

4. Good sealing performance, IP65 enclosure

Application

Advantages

• Sturday valve body with reasonable structure design, and best material to be used

Technical data

Wiring options

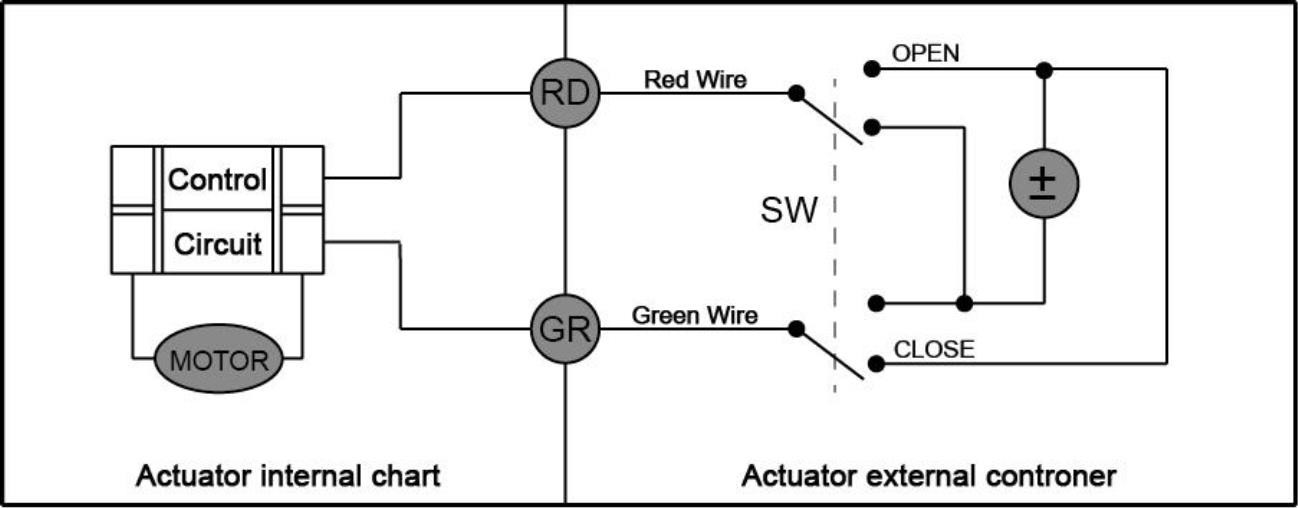

• Two wires and reverse polarity (DC3-6V / DC12V)

1. Connecting SW to OPEN , the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSE , the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)

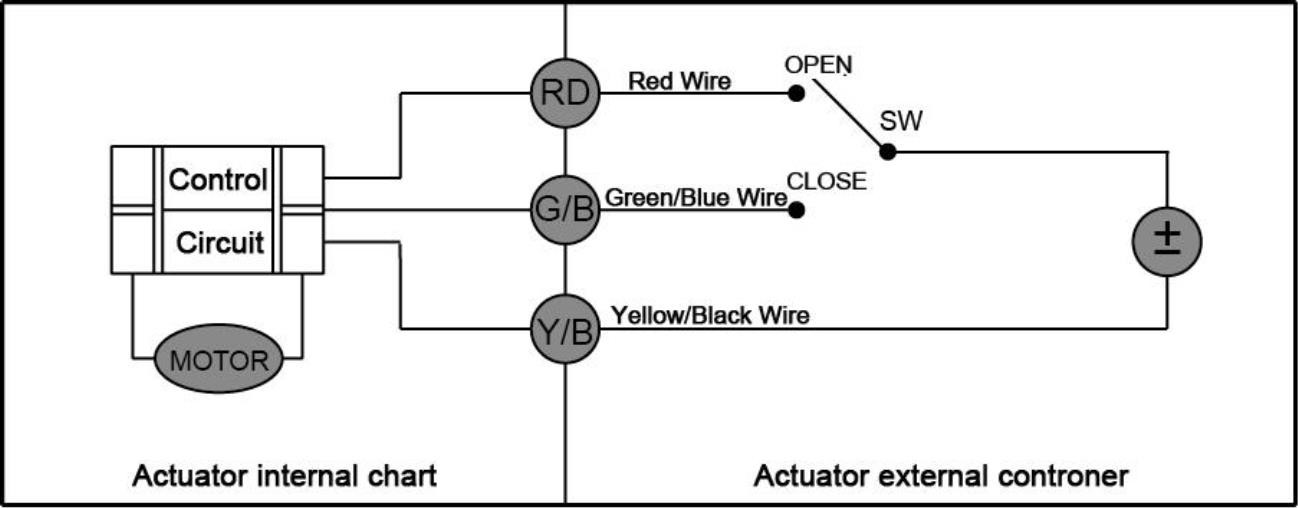

• Three wires and two control points (DC3-6V / DC12V / DC24V)

1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: AC24V/AC220V can only be used for 50K series electric valves

• Three wires and one control point (DC3-6V/12V)

1. Connecting SW, the valve opens , getting the position ,automatically power off, thevalve remain fully open position

2. Disconnecting SW, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: When power is DC voltage and Red Wires is “+”,Blue wire is “—”

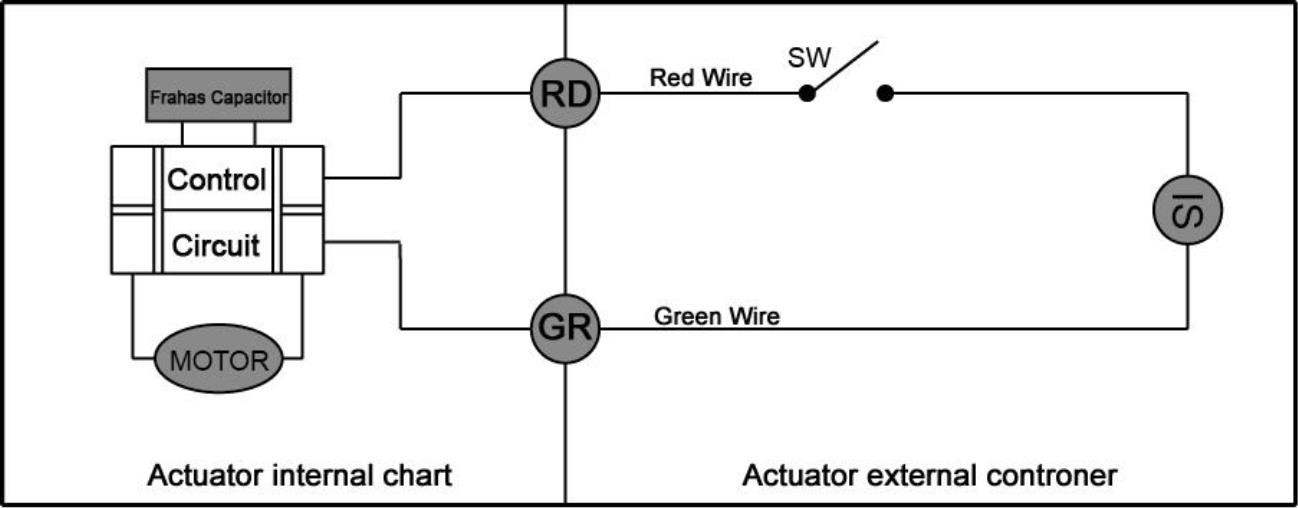

• Two wires and power off return (DC3-6V/ADC9-24V/AC220V)

1. SW connecting, the valve open, getting the position and the power off automatically, the valve remains fully open/close position

2. SW disconnecting, the valve close, getting the position and power off automatically, the valve remains fully open/close position

• Five wires micro conntroller with signal feedback (DC3-6V/12V)

1. Connecting SW and OPEN, the valve opens, getting the position green wire output the OLS signal, the controller tests the signal OLS, connect SW to STOP, the valve stops and remains fully open position

2. Connecting SW and CLOSE, the valve close, getting the position red wire output the CLS signal, the controller tests the signal CLS, connect SW to STOP, the valve stops and remains fully close position,

Note: Please make sure the signal wires "red", "black" and "green" be connected at first, then connect the power wires " yellow" and "blue".
