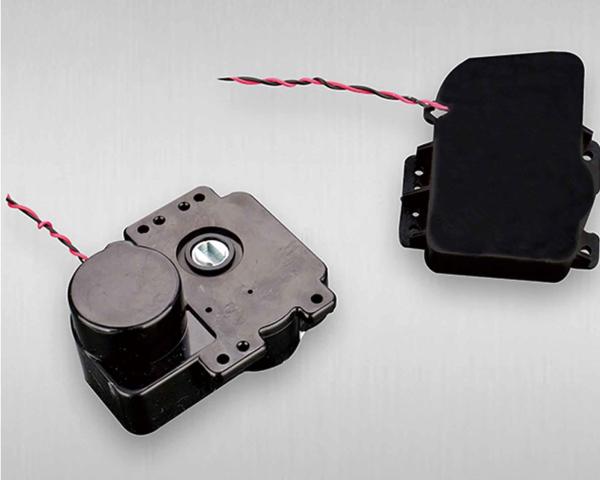

DC2.5V motor actuator, 2 way brass ball valve dN15, PN10

Product description

You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio.

Technical data-Model K32
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <40 mA @ 3.6V, 23ºC
3. Current with max loading: <650 mA (motor #300)
4. Torque: >2 NM (2000:1)
5. Open/close time: <10 S (2000:1)
6. Velocity reduction ratio: for DN15, DN20, DN25 ball valve (2000:1)
7. Protection: IP67

Wiring definition

Production overview

We're a national key high-tech enterprise serving in fields of new energy management system and equipment, main services include: HVAC central air-conditioning and cold storage, solar distributed energy & regional energy, flow & energy management.

We have integrative certification of mechanical & electrical installation and building intelligentized design & construction, production license of measurement production, and is able to contract projects of building mechanical and electrical installation, building intellectualizing, distributed energy, combined cold & heat & power supply and new energy application.

RUNPAQ initiates a low-carbon building energy route with the concept of "low-carbon energy, future of architecture":

1. Developing energy-saving technologies to improve the electricity efficiency and reduce the energy needs;

2. Developing new energies to reduce the dependence of building on mineral energy.
