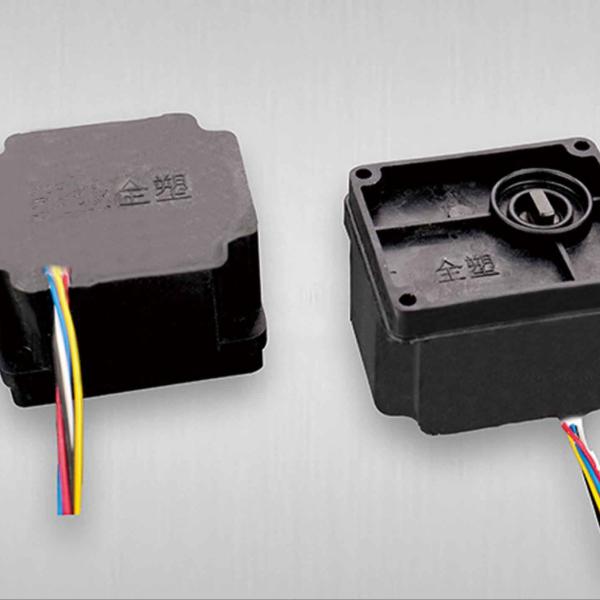

    Electric Regulating Heating Zone Valve Motor DN20 IP66 Protection

    Ask Lasest Price
    Brand Name : Runpaq
    Model Number : K30
    Certification : NONE
    Payment Terms : T/T, L/C, D/A, D/P, Western Union
    Supply Ability : 200000 sets/month
    Delivery Time : 15-21 days
    • Product Details
    • Company Profile

    Electric Regulating Heating Zone Valve Motor DN20 IP66 Protection

    electric valve actuator motor for regulating heating valve dN20


    Product description

    The brass ball valve need be driven to be open or close, or an open angle by a DC motor actuator. Our DC synchronized gear actuator motors are available with DC2.5V-5V lithium powered, torque: 1NM - 9 NM at different velocity reduction ratio. The robust structure, ensures extremely long service life cycles more than 20,000 times, also different protection level. You'll get a wide selection of spare parts for your products in the application on HVAC, automation, IOT smart city, zone control valve, heating valve, AMR water meter, etc. A mini motorized ball valve, can be 2 way or 3 way full port, which are used for the flow control, zone valve, heating valve control, smart water meter open / close.


    Technical data-Model K30
    1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
    2. Current at idle: <25 mA @ 3.6V, 23ºC
    3. Current with max loading: <450 mA (motor #300)
    4. Torque: >4.5 NM (6500:1)
    5. Open/close time: <25 S (6500:1)
    6. Velocity reduction ratio: for DN15, DN20, DN25, DN32 ball valve (6500:1)
    7. Protection: IP67

    Wiring definition

    NoColor of wireDefinition
    1blueon position signal, valve open
    2whiteon position signal, public
    3yellowon position signal, valve close
    4blackpositive (+)
    5rednegative (-)

    Production overview
    Electric Regulating Heating Zone Valve Motor DN20 IP66 ProtectionElectric Regulating Heating Zone Valve Motor DN20 IP66 ProtectionElectric Regulating Heating Zone Valve Motor DN20 IP66 Protection
