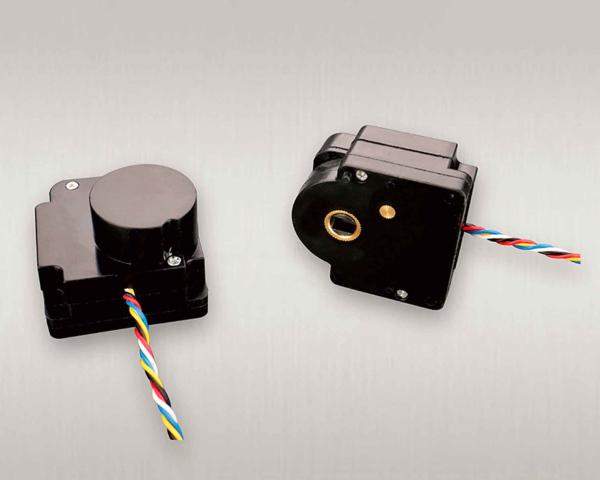

24V zone valve motor actuator, zone valve motor hot, synchronous geared motor

Product description

The synchronous geared motor is an electric motor actuator in which, at steady state, the rotation of the shaft is synchronized with the frequency of the supply current; the rotation period is exactly equal to an integral number of electric cyles. Our step geared motor actuator can be attached to IC card prepay water meter, heat meter, motorized ball valve to control the electric ball valve open or close.

Technical data-Model K07
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <550 mA (motor #320)
4. Torque: >1.8 NM
5. Open/close time: <8S
6. Velocity reduction ratio: 1500:1 (for DN15 / DN20 ball valve)
7. Protection: IP67

Wiring definition
