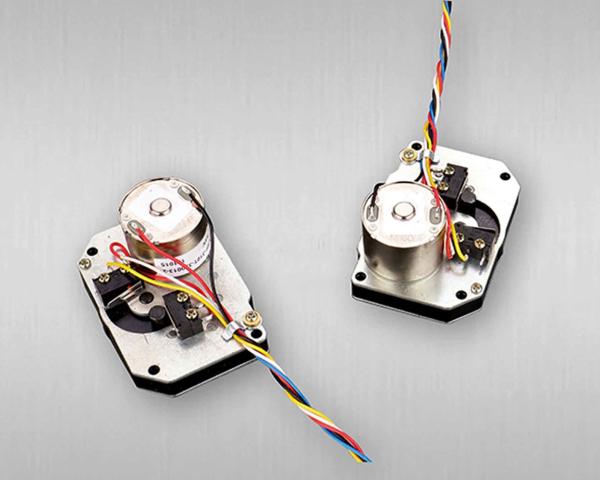

brass Mini motorized ball valve actuator motor, 4.5NM, DN32

Product description

This DC2.5-5V ball valve motor actuator, is well designed for the motorized ball valve open or close. The valve diameter range: DN15, DN20, DN25, DN32, DN40, up to DN80.The torque range from 1.8NM to 4.5 NM. The water flow control or heat control in water utility, HVAC, such as mini motorized ball valve , smart water meter with ball valve, zone valve, heat control, need be made through a mini motorized ball valve.

Technical data-Model K20
1. Voltage: DC3.6 V (Range: DC2.5 - 5 V, the higher the voltage, the larger torque, the shorter life span)
2. Current at idle: <25 mA @ 3.6V, 23ºC
3. Current with max loading: <450 mA (motor #300)
4. Torque: >4.5 NM (6500:1)
5. Open/close time: <25 S (6500:1)
6. Velocity reduction ratio: (6500:1)
7. Protection: 0

Wiring definition

Production overview
