PN10 zone heating vlaves, SS304 stainless ball valve, with DC actuator motor

Product Description

Our zone valves are consisted of stainless or brass ball valve and electric actuator motor by DC or AC. It provides on-off, normally open or normally closed control in closed hydronic systems. The mini motorized ball valves can be used in a wide variety of heating and condensing cooling applications, primarily designed for use with baseboard, fan coils, radiators, convectors, air handlers, heat pumps and radiant applications.

Features

1. All-metal gear reducer.

2. The output torque is large, especially for the piping system with large scale.

3. Small size, compact structure, compact appearance and various assembly methods.

4. Patented technology anti-scale body design can delay the scaling time.

5. Good sealing performance, sealing grade IP65.

Application

Advantages

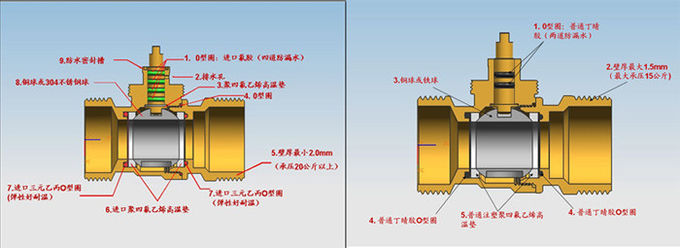

• Sturday valve body with reasonable structure design, and best material to be used

Technical data

Valve body material	Connection port	Diameter	D	L	H	W
			(mm)			(Kg)
Brass	Both female thread full diameter	DN8	8	46	31	0.232
		DN10	8	46	31	0.231
		DN15	15	57	38	0.308
		DN20	15	66	38	0.389
		DN25	20	72	47	0.478
	3-way vertical	DN15	12	63	49	0.31
		DN20	15	66	53	0.367
	Female-male thread	DN15	15	63	38	0.307
		DN20	15	66	38	0.337
		DN32	20	76	50	0.569
	Both male thread	DN15	15	68	38	0.299

Wiring options

• Two wires and reverse polarity (DC3-6V / DC12V)

1. Connecting SW to OPEN , the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSE , the valve close , getting the position ,automatically power off, the valve remains side passes position(fully closed)

• Three wires and two control points (DC3-6V / DC12V)

1. Connecting SW to OPEN, the valve opens , getting the position ,automatically power off, the valve remain fully open position

2. Connection SW to CLOSED, the valve close , getting the position ,automatically power off, the valve remains side passes position (fully closed)

Note: AC24V/AC220V can only be used for 50K series electric valves

• Five wires micro conntroller with signal feedback (DC3-6V/12V)

1. Connecting SW and OPEN, the valve opens, getting the position green wire output the OLS signal, the controller tests the signal OLS, connect SW to STOP, the valve stops and remains fully open position

2. Connecting SW and CLOSE, the valve close, getting the position red wire output the CLS signal, the controller tests the signal CLS, connect SW to STOP, the valve stops and remains fully close position,

Note: Please make sure the signal wires "red", "black" and "green" be connected at first, then connect the power wires " yellow" and "blue".

Factory show

We're a national key high-tech enterprise serving in fields of new energy management system and equipment, main services include: HVAC central air-conditioning and cold storage, solar distributed energy & regional energy, flow & energy management.

We have integrative certification of mechanical & electrical installation and building intelligentized design & construction, production license of measurement production, and is able to contract projects of building mechanical and electrical installation, building intellectualizing, distributed energy, combined cold & heat & power supply and new energy application.

RUNPAQ initiates a low-carbon building energy route with the concept of "low-carbon energy, future of architecture":

1. Developing energy-saving technologies to improve the electricity efficiency and reduce the energy needs;

2. Developing new energies to reduce the dependence of building on mineral energy.
